Noted: We suggest solar panel power should be 1.3-1.4 times higher than solar pump power ,
And solar pump inverter power should be higher level than solar pump.

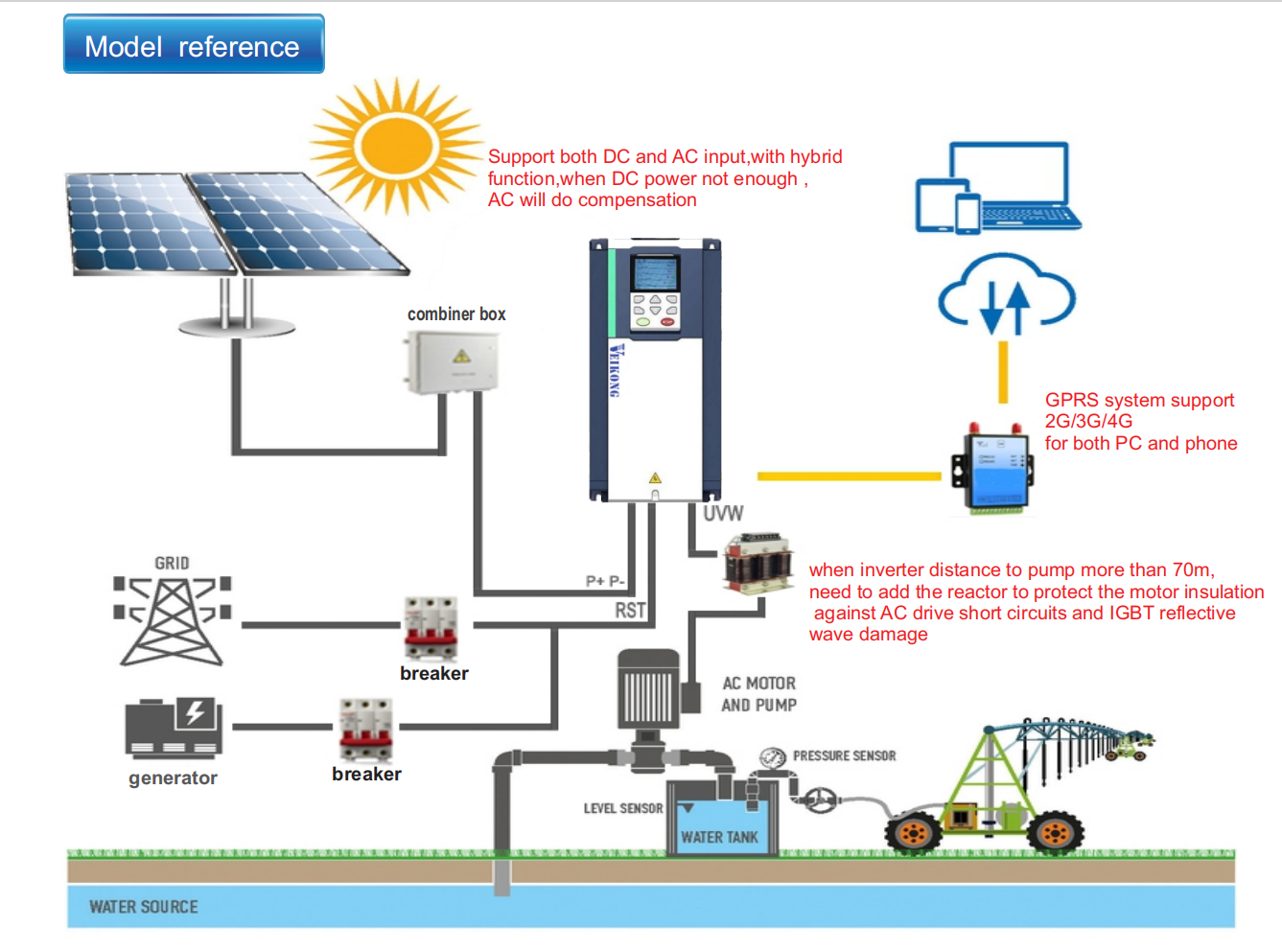

When solar pump distance to inverter higher than 100m,it should be equipped with Output reactor or higher level power inverter .
For Solar panel,l total VOC less than Maximum DC voltage of inverter and Solar panel vmp is recommend 530V for 380V pump and 305V for 220V pump
Features
● Comprehensive voltage level and power range
Support single phase/three phase 220V, and three phase 380V solar water pump inverter, power from 0.4kW to 110KW
● Easy to use
Simply connect the photovoltaic panel to the inverter, no need to set any parameters, and the PV pump can be automatically started after power-on
● Multiple protection measures
It has protection functions such as PV over-voltage protection, PV polarity reverse connection alarm, over-temperature automatic derating, etc., which can effectively extend the life of the product
● Advanced MPPT algorithm
Ensure solar power tracking efficiency can reach 99%
● GPRS remote monitoring
Supports optional GPRS module, which can realize remote monitoring function of computer webpage and mobile APP
● AC/DC switching scheme
All series of products can realize automatic switching of PV DC input and grid AC input, which can meet 24 hours of no care work
● IP65 solution
Supports IP65 grade cabinet solutions
Accessories:
1. GPRS (support 2g/3g/4g internet)
It supplies water volume monitoring and operation of inverter from anywhere at anytim
It’s convenient to visit real time and historical data via web or Android APP anytime and anywhere.
This easy-to-use platform makes monitoring of solar pump systems simple and convenient,
far reducing operate time and monitoring costs as well.
2. LCD keypad
Standard inverter are with LED keypad,LCD keypad is optional.
LCD keypad can monitor 4 parameters at the same time. LED keypad show one parameter only.
LCD keypad with detailed parameter explain,no need use user manual ,more user friendly.
LCD keypad with copy and update and download function.widely used for government projects and big farms.
VEIKONG 200kw SOLAR PUMP INVERTER PICTURE:
Model Range
| Drive model | Max DC input current (A) | Rated output current (A) | Applicable water pump (kW) |
| VFD500M-40T00150-PV | 9 | 3.7 | 1.5 |
| VFD500M-40T00220-PV | 12 | 5 | 2.2 |
| VFD500M-40T00400-PV | 16.5 | 9.4 | 4 |
| VFD500M-40T00550-PV | 23.9 | 13 | 5.5 |
| VFD500M-40T00750-PV | 30.6 | 17 | 7.5 |
| VFD500-40T00150-PV | 9 | 4.2 | 1.5 |
| VFD500-40T00220-PV | 12 | 5.6 | 2.2 |
| VFD500-40T00400-PV | 16.5 | 9.4 | 4 |
| VFD500-40T00550-PV | 23.9 | 13 | 5.5 |
| VFD500-40T00750-PV | 30.6 | 17 | 7.5 |
| VFD50040T01100-PV | 39.2 | 25 | 11 |
| VFD500-40T01500-PV | 49.0 | 32 | 15 |
| VFD500-40T01850-PV | 50 | 37 | 18.5 |
| VFD500-40T02200-PV | 60 | 45 | 22 |
| VFD500-40T03000-PV | 81 | 60 | 30 |
| VFD500-40T03700-PV | 90 | 75 | 37 |
| VFD500-40T04500-PV | 130 | 90 | 45 |
| VFD500-40T05500-PV | 150 | 112 | 55 |
| VFD500-40T07500-PV | 200 | 152 | 75 |
| VFD500-40T09000-PV | 250 | 176 | 90 |
| VFD500-40T11000-PV | 300 | 210 | 110 |
| VFD500-40T13200-PV | 360 | 253 | 132 |
| VFD500-40T16000-PV | 430 | 304 | 160 |
| VFD500-40T18500-PV | 500 | 360 | 185 |
| VFD500-40T20000-PV | 550 | 380 | 200 |
| VFD500-40T22000-PV | 620 | 426 | 220 |
| VFD500-40T25000-PV | 680 | 465 | 250 |
| 220V single phase/three phase level |
| VFD500-20T00075-PV | 6.7 | 4.5 | 0.75 |
| VFD500-20T00150-PV | 9.9 | 7 | 1.5 |
| VFD500-20T00220-PV | 14.1 | 10.6 | 2.2 |
| VFD500-20T00400-PV | 22.6 | 17 | 4 |
| VFD500-20T00550-PV | 30 | 25 | 5.5 |
VEIKONG Solar Pump Inverter Quick Commission
1-1 Auto start by keypad start and stop (no need to set any parameter,P47.03=600S ,so it will auto start after 600s ,so P47.03 decide starting time)
1-2. Auto start by terminal with a switch (P00.06-1 terminal control and di1 short com )
2. DI2 is forced switch to grid (P06.02)
3. DI3 is water full warning (P06.03)
4. DI4 is shortage of water in the well(P06.04)
5. P7.03 relay 1
6. 07.01 DO1
7. 07.02 DO2
8. 21.00 Scrolling display
9. 47.05 light detection threshold default 20hz
10. 47.06 light detection time 120s
11. 47.07 wake up time 600s
